Videojet® IP DataFlex® Plus Thermal Transfer Overprinter

Videojet® IP DataFlex® Plus Thermal Transfer Overprinter

Thermal Transfer Label Printing for Washdown Applications

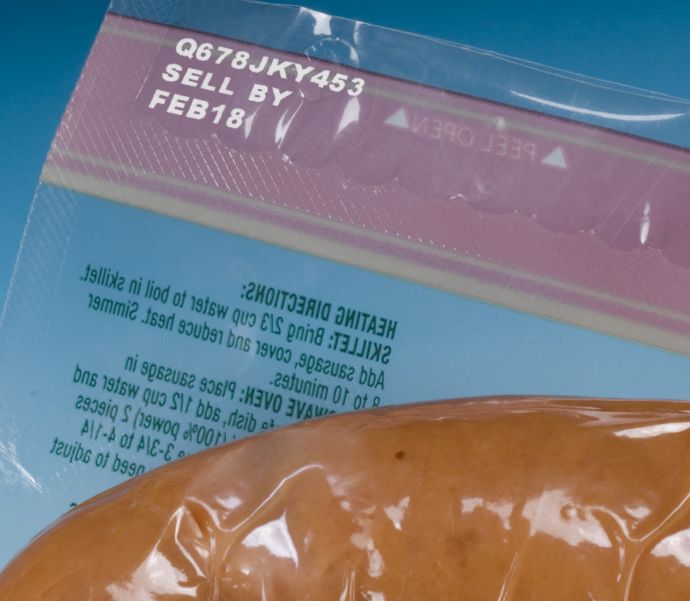

The Videojet IP-rated DataFlex Plus industrial thermal transfer printer is ideal for flexible film coding applications where the line undergoes washdown after production is complete. The IP-rated DataFlex can remain in place during washdown therefore minimizing preparation time and allowing maximum operator utilization.

Contact us for New Equipment Sales


Printer ModeIntermittent and Continuous Motion
Print Gap0.5 mm (0.02 in)
Maximum Ribbon Length1200 m (3937 ft)
Ribbon WidthsMin: 20 mm (0.8 in)
Max: 55 mm (2.17 in)
Continuous Mode:
      Maximum Print Area (Width x Length)53 x 200 mm (2.09 in x 7.86 in)
      Maximum Print Speed1000 mm/s (39.37 in/sec)
      Minimum Print Speed0 mm/sec (0 in/sec)
Intermittent Mode:
      Maximum Print Area (Width x Length)

53 x 75 mm (2.09 x 2.95 in) RH model
53 x 68 mm (2.09 x 2.68 in) LH model

      Maximum Print Speed800 mm/sec (31.50 in/sec)
      Minimum Print Speed50 mm/sec (1.96 in/sec)
Bar Code PrintingYes, as variable information
Estimated Maximum Throughput (Single Line Code, Continuous Mode)Approximately 400 packs/min
Environmental ProtectionIP65 printer, IP55 Controller
Standard User InterfaceCLARiTY™ 8.4 inch SVGA color LCD touchscreen
Leader/Follower Capability (Up to 4 Printers Controlled by One User Interface)Optional
Standard CommunicationRS232, Ethernet, USB Memory Stick, Binary and ASCII comms
Web Browser CapabilityYes


Protection in harsh environments:

  • IP65 protection shortens washdown preparation time
  • No need to remove the printer or cover it with a bag saving time and reducing alignment problems

Enables consistent high quality print and coding flexibility:

  • 300 dpi print resolution assures high quality codes
  • Patented software controlled ribbon drive allows complete control over ribbon movement and tension
  • Real-time variable data makes a variety of applications possible
  • Prints codes up to 53 mm (2.09 in) wide at speeds up to 400 packs/min

Simple Usability limits operator interaction reducing potential for errors:

  • Intuitive CLARiTY™ 8.4 inch color touchscreen makes set-ups fast and easy with fewer errors
  • Variable date and time fields are automatically updated eliminating the time and effort spent changing stamps
  • Ribbon cassette ensures replacement is fast and easy, compared to having to thread ribbon through the coder
  • Optional Leader/Follower functionality allows up to 4 printers to be controlled from a single DataFlex® Plus controller

Uptime Advantage reduces downtime, saving both production time and money:

  • Ribbon tension is consistently maintained through a highly reliable clutchless drive to eliminate ribbon-related downtime
  • Intermittent and continuous printing in the same machine accommodates future packaging equipment upgrades
  • 1200 m (3937 ft) ribbon length and 0.5 mm (0.020 in) print gap means less frequent ribbon changes than mechanical stamping systems
  • Innovative ribbon saving features like interleaving and radial printing can double ribbon utilization, saving money and increasing time between ribbon replacement

Code Assurance helps eliminate costly coding errors:

  • Advanced coder software virtually eliminates code set-up errors
  • CLARiSOFT® code design software prevents incorrect printed dates, missed codes and costly production rework
